Article number: 01 033 00 99

SWS wired leak protection fitting

SWS
Ball valve with maintenance-free, electric actuator for period-controlled, automatic or manual shut-off of the drinking water installation. Selectable via SWS Server and integrated SWS BE-F wired bus extender. Gear motor disengage with lockable push button.
Remember Compare Redirect Datasheet
Find contact person on site
Scope of supply Technical data Related items BIM/CAD

Scope of delivery

  • Leak protection fitting
    • Connection cable 1000 mm, 3x 0.75 mm²
    • Electric drive
    • Ball valve
    • Control unit with integrated SWS BE-K wired bus extender

Delivery data

  • Weight: 2,25 kg/Piece
  • Packing unit: 1

Technical data

  • Material: Parts in contact with water Brass, conform to German drinking water regulations
  • Input: 230 VAC, 50 - 60 Hz
  • Protection class: IP54
  • Connection: DN 20 G 3/4 IG
  • Outlet: DN 20 G 3/4 IG
Mounting instructions

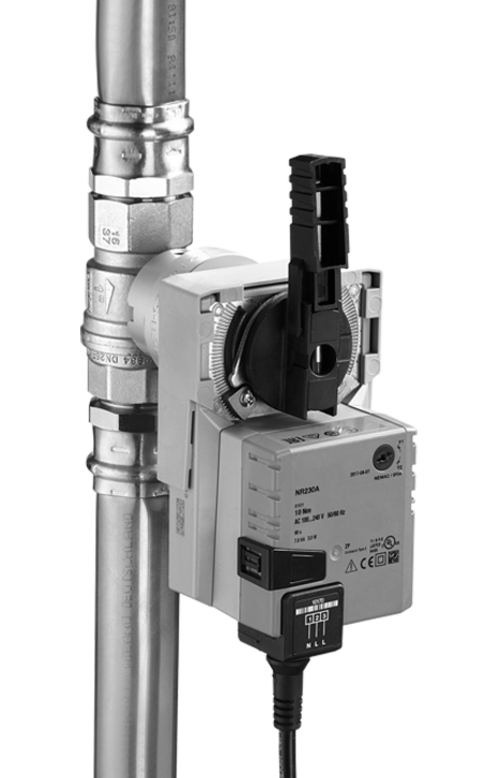

  • The figure shown illustrates the installation site.
Downloads

Assembly instructions

SWS Leckageschutz-Armatur

Brochure

SWS leak protection valve.

Brochure

Connect sanitary fittings intelligently.With the SCHELL SWS Water Management System.

Brochure

The water management system SWS.

Brochure

Worldwide access to professional water management. With SMART.SWS
Product videos
SCHELL Water Management System SWS
SMART.SWS - Worldwide access to professional water management
Function SWS leak protection valve
