Article number: 02 814 06 99

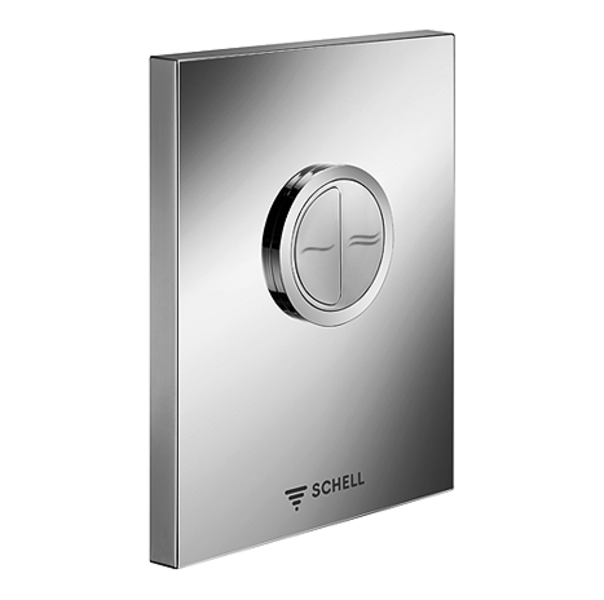

WC operating panel EDITION Eco ND

For SCHELL COMPACT II ND concealed WC flush valve. Low pressure from 0.8 bar. Dual flush.
Remember Compare Redirect Datasheet
Find contact person on site
Scope of supply Technical data Related items BIM/CAD

Scope of delivery

  • Designer operating panel
    • Operating buttons for economy/main flush
  • Low-pressure self-closing cartridge with automatic nozzle cleaning needle
  • Baffle plate for flow rate regulation
  • Installation frame

Delivery data

  • Weight: 0,74 kg/Piece
  • Packing unit: 1

Technical data

  • Dual flush: Economy flush volume 3 l, Main 4.5 - 6.0 l
  • Material: Actuation Plastic; Front panel Plastic
  • Surface: Actuation Chrome; Front panel Chrome

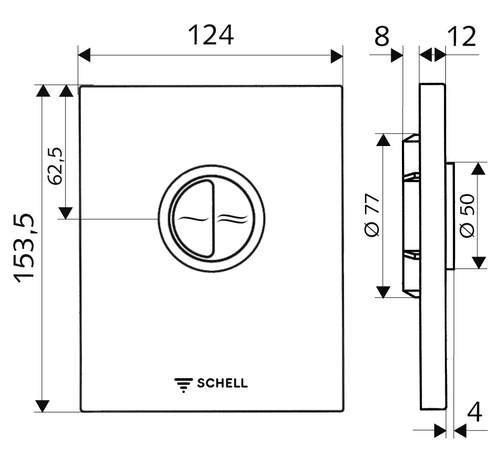

  • Dimensions front plate: W 124 mm x h 153.5 mm x d 12 mm
  • Certificates: Watermark
Necessary associated articles
Concealed WC flush valves COMPACT II ND
Article no: 01 137 00 99
