Article number: 00 802 08 99

Shower panel LINUS DP-SC-T

Mixed water, ThermoProtect thermostat
Made from a strong extruded aluminium profile with a high-quality, anodised finish. Manual actuation with automatic closing. Pivoting front panel for easy installation and servicing. Suitable for connections from rear or for exposed connections from above.
Find contact person on site

Scope of delivery

  • Self-closing exposed shower panel
    • Operating button for thermostat with push sleeve, temperature setting unlockable/lockable at 38 °C
    • SC self-closing button
    • Self-closing cartridge SC II
    • ThermoProtect thermostat, conform to EN 1111, anti-scalding protection if cold water supply fails
    • 2 backflow preventers (EN 1717: EB-type)
    • 2 pre-filters
  • Shower head COMFORT Flex, adjustable angle of inclination 12 - 32°, vandal-resistant, with soft jet and anti-limescale knob
  • Connection accessories with isolating valve(s)
  • Fastening material for wall installation

Delivery data

  • Weight: 13,74 kg/Piece
  • Packing unit: 1

Technical data

  • Running time: 5 - 30 s (20 s )
  • Flow: max. 9 l/min pressure independent
  • Flow pressure: 1.0 - 5.0 bar
  • Max. operating temperature: 70 °C temporarily
  • Material: Actuation Brass; Shower head Brass, conform to German drinking water regulations; Housing Aluminium; Waterpath Dezincification-resistant brass, conform to German drinking water regulations
  • Surface: Actuation Chrome; Shower head Chrome; Housing Brush anodised aluminium
  • Dimensions: w 226 mm x h 1200 mm x d 115 mm
  • Connection: 2x DN 15 G 1/2 AG
  • Certificates: Belgaqua
Recommended associated articles
Soap tray shower panel LINUS
Article no: 00 809 08 99
Handle for thermostat EasyGrip
Article no: 29 192 06 99
Sampling valve COMFORT Flex
Article no: 01 823 00 99
For exposed connections from above
Pipe set shower panel connection 500 mm
Article no: 08 481 06 99
or
Pipe set shower panel connection 1000 mm
Article no: 08 482 06 99

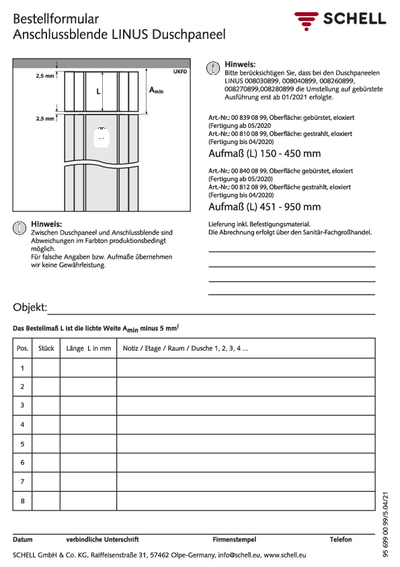

Connection cover shower panel LINUS 150 - 450 mm
Article no: 00 839 08 99
or
Connection cover shower panel LINUS 150 - 950 mm
Article no: 00 840 08 99
