Article number: 01 900 28 99

Concealed shower LINUS Basic D-SC-T

Mixed water, ThermoProtect thermostat
For WBD-SC-T concealed masterbox. Manual actuation with automatic closing.
Remember Compare Redirect Datasheet
Find contact person on site
Scope of supply Technical data Related items BIM/CAD

Scope of delivery

  • Front panel
    • SC-V self-closing button with push sleeve
    • Operating button for thermostat with push sleeve, temperature setting unlockable/lockable at 38 °C
  • Fastening material

Delivery data

  • Weight: 1,78 kg/Piece
  • Packing unit: 1

Technical data

  • Material: Actuation Brass, Front panel Stainless steel
  • Surface: Actuation Chrome, Front panel Brushed stainless steel
  • Dimensions front plate: W 183 mm x h 283 mm x d 3 mm
Necessary associated articles
Concealed Masterbox WBD-SC-T
Article no: 01 800 00 99
Recommended associated articles
Handle for thermostat EasyGrip
Article no: 29 192 06 99
Shower head COMFORT Flex
Article no: 01 821 06 99
or
Low aerosol shower head
Article no: 01 814 06 99
Wall connection elbow PURIS
Article no: 06 469 06 99
or
Wall connection elbow
Article no: 06 463 06 99
For manual thermal disinfection
Solenoid valve thermal disinfection
Article no: 01 875 00 99
Thermal disinfection key switch
Article no: 01 538 00 99
Concealed power supply unit 12 VDC, 100 - 240 VAC, 50 - 60 Hz
Article no: 01 566 00 99
or
Mains adapter VDC, 100-240 VAC, 50-60 Hz
Article no: 01 490 00 99
or
Electrical junction box 12 VDC, 100 - 240 VAC, 50 - 60 Hz
Article no: 01 537 00 99
Where masterbox installation is too deep
Extension set D-SC-T 25 mm
Article no: 01 859 06 99
or
Extension set D-SC-T 50 mm
Article no: 01 863 06 99
Downloads

Assembly instructions

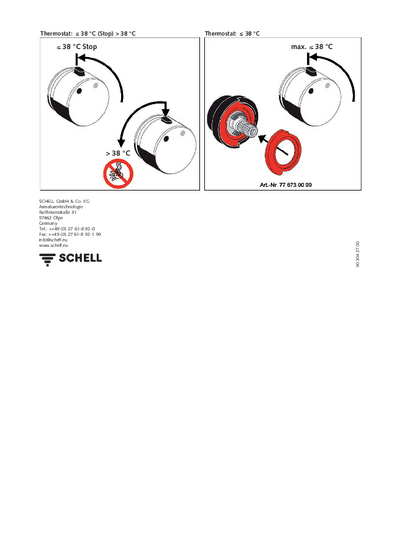

Thrermostat 38°C

Assembly instructions

LINUS BASIC D-SC-T

Brochure

Shower fittings.
