Article number: 02 254 06 99

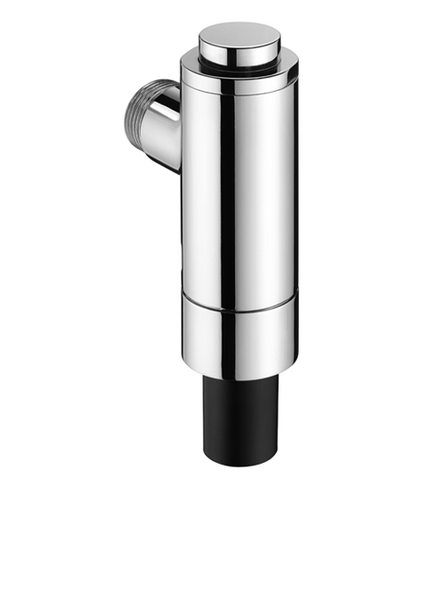

Exposed WC flush valve SCHELLOMAT Value

Low-pressure flush valve. All-metal design with brass push button. Conform to DIN EN 12541. Single flush.
Remember Compare Redirect Datasheet
Find contact person on site
Scope of supply Technical data Related items BIM/CAD

Scope of delivery

  • Exposed WC flush valve
    • Self-closing cartridge with automatic nozzle cleaning needle
  • Flush pipe connection with pipe interrupter

Delivery data

  • Weight: 0,82 kg/Piece
  • Packing unit: 1

Technical data

  • Flow pressure: 0.4 - 2.5 bar
  • Flush flow: 1.0 - 1.3 l/s
  • Flush volume flush volume: 6 l
  • Material: Housing Brass; Parts in contact with water Brass, conform to German drinking water regulations, Plastic
  • Surface: Chrome
  • Connection: DN 25 G 1 AG
  • Flush pipe connection: Ø 30 mm
Downloads

Installation instructions

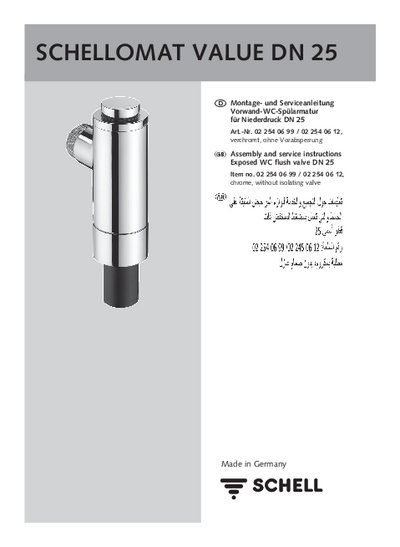

Exposed WC flush valve SCHELLOMAT VALUE DN 25

Flyer

Wall-mounted WC flush valve SCHELLOMAT VALUE

Brochure

WC and urinal flush systems.

Brochure

Flush technology with system.
