Article number: 01 656 06 99

Exposed wash basin tap VITUS VW-AH-M

Mixed water
Manual open/cold/hot actuation with clinic arm lever.
Remember Compare Redirect Datasheet
Find contact person on site
Scope of supply Technical data Related items BIM/CAD

Scope of delivery

  • Open/cold/hot exposed wash basin tap
    • Ergonomic clinic arm lever 153 mm
    • Valve for carrying out manual thermal disinfection (in accordance with DVGW worksheet W 551)
    • Open /cold/warm ceramic cartridge with hot water restrictor
    • 2 backflow preventers (EN 1717: EB-type)
    • Pivoting outlet (lockable) with Care flow regulator
  • 2 S-connections and rosettes (depth-adjustable)

Delivery data

  • Weight: 4,93 kg/Piece
  • Packing unit: 1

Technical data

  • Flow: 7.5 - 9.0 l/min
  • Flow pressure: 1.0 - 5.0 bar
  • Max. operating temperature: 70 °C (80 °C for thermal disinfection)
  • Material: Outlet Brass, conform to German drinking water regulations; Actuation Brass; Housing Brass, conform to German drinking water regulations
  • Surface: Chrome

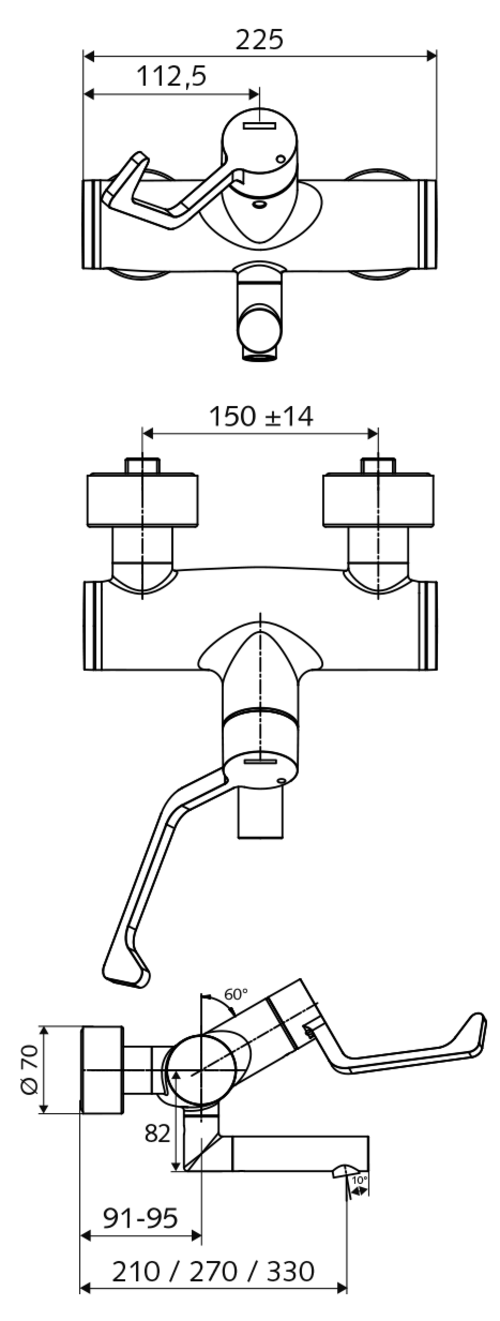

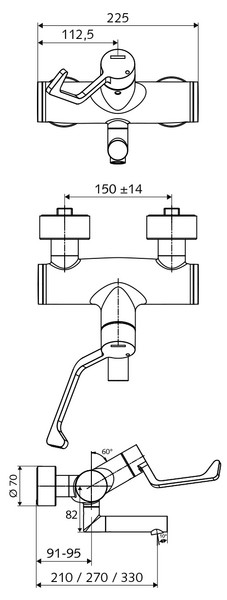

  • Projection to centre of aerator: 210 mm
  • Connection: 2x DN 15 G 1/2 AG
  • Certificates: PA-IX 38239/IO, Belgaqua, WRAS applied
  • Noise class: I
  • Flow class: O
Recommended associated articles
S-connecting with isolating valve
Article no: 23 775 00 99
Wash basin outlet valve OPEN
Article no: 02 002 06 99
or
Wash basin outlet valve PUSH OPEN
Article no: 02 000 06 99
Downloads

Installation instructions

Vorwand-Waschtisch-Armatur VITUS, Mischwasser

Brochure

Washbasin taps.
Product videos
VITUS family
