Article number: 01 630 06 99

Exposed wash basin tap VITUS VW-SC-T

Mixed water, ThermoProtect thermostat
Manual actuation with automatic closing. Easy flow time adjustment.
Find contact person on site

Scope of delivery

  • Self-closing exposed wash basin tap
    • SC self-closing button
    • ThermoProtect thermostat, conform to EN 1111, unlockable/lockable temperature lock at 38 °C, anti-scalding protection if cold water supply fails
    • Self-closing cartridge SC II
    • 2 backflow preventers (EN 1717: EB-type)
    • Pivoting outlet (lockable) with flow regulator
  • 2 S-connections and rosettes (depth-adjustable)

Delivery data

  • Weight: 5,05 kg/Piece
  • Packing unit: 1

Technical data

  • Running time: 2 - 15 s (7 s )
  • Flow: max. 5 l/min pressure independent
  • Flow pressure: 1.0 - 5.0 bar
  • Max. operating temperature: 70 °C (80 °C for thermal disinfection)
  • Material: Outlet Brass, conform to German drinking water regulations; Housing Brass, conform to German drinking water regulations
  • Surface: Chrome

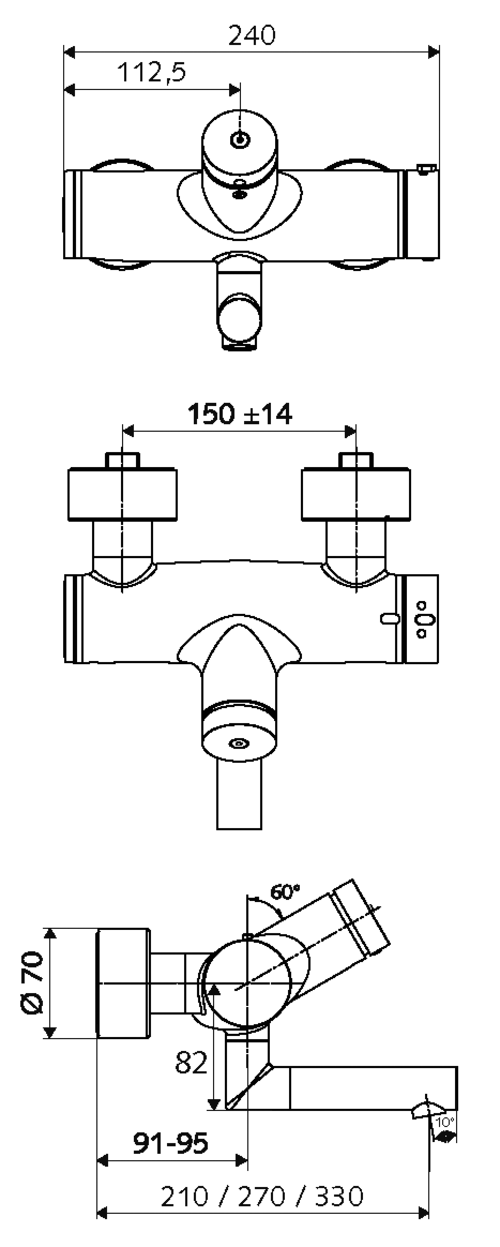

  • Projection to centre of aerator: 270 mm
  • Connection: 2x DN 15 G 1/2 AG
  • Certificates: PA-IX 38234/IO, Belgaqua
  • Noise class: I
  • Flow class: O
Recommended associated articles
S-connecting with isolating valve
Article no: 23 775 00 99
