Article number: 01 939 28 99

Concealed wash basin tap LINUS W-E-V

Cold water/pre-mixed water
For WBW-E-V concealed masterbox. Infrared sensor-controlled. Battery operation. Suitable for networking with the SCHELL SWS water management system. Configurable via SCHELL Single Control SSC.
Find contact person on site

Scope of delivery

  • Front panel with infrared sensor window
  • Installation frame with infrared sensor electronics, programmable
  • 6 V battery compartment, protection class IP65
  • 4x AA alkaline battery 1.5 V
  • Wall outlet with flow regulator (theft-safe)
  • Fastening material

Delivery data

  • Weight: 1,96 kg/Piece
  • Packing unit: 1

Technical data

  • Setting options via SWS SSC
    • Sensor range (short/medium/long)
    • Programming via short range reflex (off/on)
    • Max. flow time (1-360 s)
    • Follow-up time (0.6-60 s)
    • Stagnation flush (off/5-600 s, every 1-240 h after last flush/every 1-240 h)
    • Continuous flush for thermal disinfection, with anti-scalding protection (off/15-600 s)
    • Duration of flow (off/15-600 s)
    • Energy saving mode (off/1-254 h after last flush)
    • Cleaning stop (off/60-360 s)
  • Setting options via short range reflex
    • Sensor range (short/medium/long)
    • Stagnation flush (off/30 s, every 24 h after last flush/every 24 h)
    • Continuous flush for thermal disinfection, with anti-scalding protection (off/300 s/120 s)
    • Cleaning stop (off/60 s)
  • Flow: max. 5 l/min pressure independent
  • Flow pressure: 1.0 - 5.0 bar
  • Max. Resting pressure: 8 bar
  • Max. operating temperature: 70 °C (80 °C for thermal disinfection)
  • Material: Outlet Brass, conform to German drinking water regulations; Front panel Stainless steel
  • Surface: Outlet Chrome; Front panel Brushed stainless steel

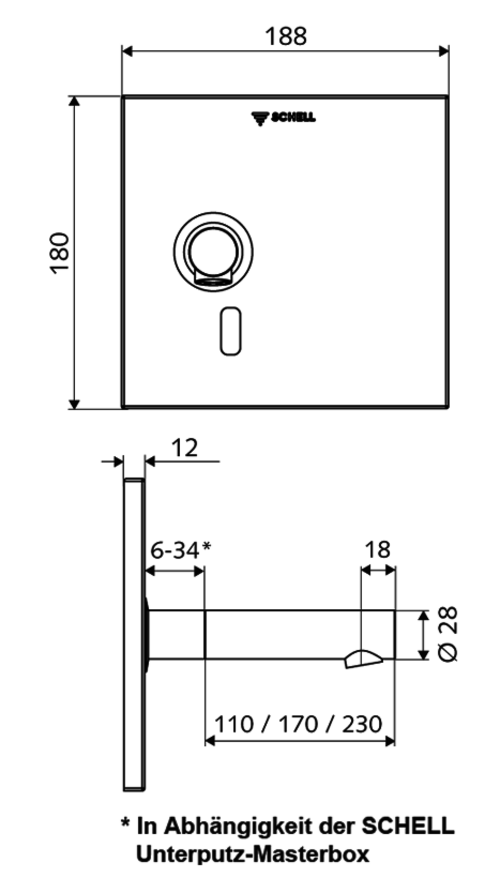

  • Outlet: L 230 mm
  • Dimensions front plate: w 188 mm x h 180 mm x d 12 mm
Necessary associated articles
Concealed Masterbox WBW-E-V
Article no: 01 947 00 99
Recommended associated articles
SSC Bluetooth® module
Article no: 00 916 00 99
