Article number: 03 309 06 99

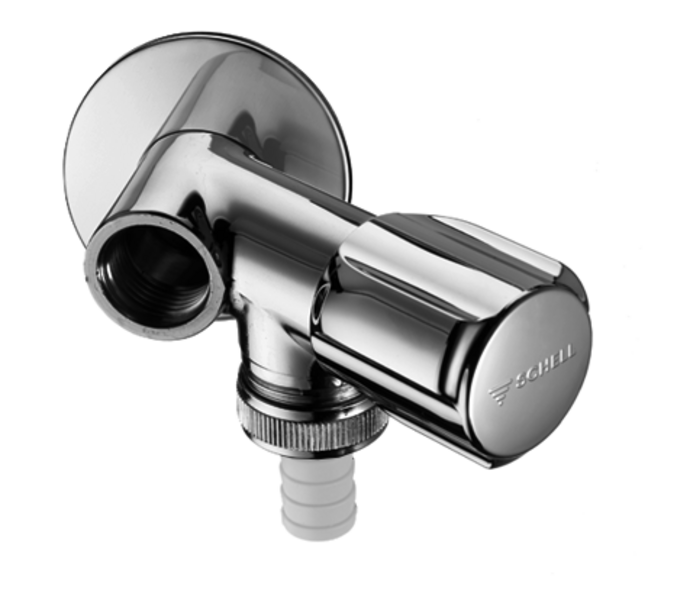

AC valve COMFORT

Auxiliary connection valve for single tap points. With COMFORT handle and grease chamber head part.
Remember Compare Redirect Datasheet
Find contact person on site
Scope of supply Technical data Related items BIM/CAD

Scope of delivery

  • Auxiliary connection valve
    • COMFORT handle
    • Backflow preventer (EN 1717: EB-type)
    • Grease chamber head part
  • Hose screw connection
  • Rosette Ø 54 mm (depth 3 mm)

Delivery data

  • Weight: 0,36 kg/Piece
  • Packing unit: 1

Technical data

  • Material: Brass, conform to German drinking water regulations
  • Surface: Chrome
  • Connection: DN 15 G 1/2 AG
  • Outlet: Hose screw connection Ø 14.5 mm (DN 20 G 3/4 AG), DN 15 G 1/2 IG
  • Safety device, conforms to EN 1717: EB
  • Certificates: PA-IX 2852/II, ACS
  • Noise class: II, at 100% flow
Recommended associated articles
Anti-vacuum device
Article no: 28 602 06 99
Hint
  • Together with anti-vacuum device: HP safety combination (EN 1717).
