Article number: 03 560 06 99

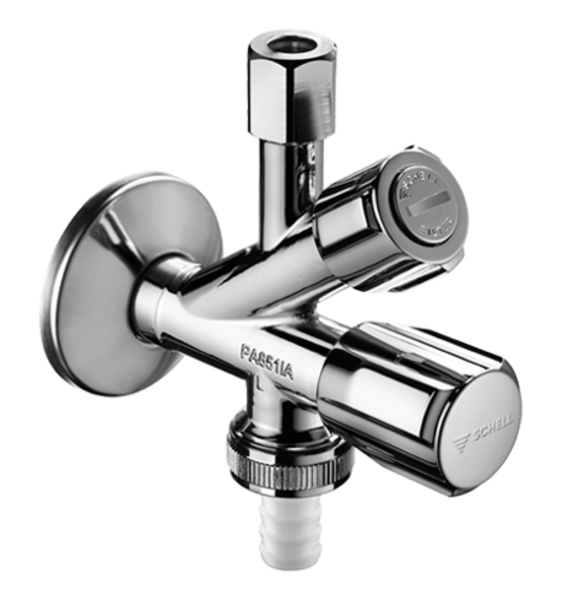

Filter combination angle valve

Filter angle valve for protecting high-quality fittings (e.g. electronic taps). Integrated appliance valve for connecting household appliances.
Remember Compare Redirect Datasheet
Find contact person on site
Scope of supply Technical data Related items BIM/CAD

Scope of delivery

  • Combination angle valve
    • COMFORT handle
    • Filter (mesh gauge: 250 µm)
    • Backflow preventer (EN 1717: EB-type) in appliance connection outlet
    • Long push rod
  • Hose screw connection
  • High-tensile brass cone compression connection with length compensation
  • Push rosette Ø 54 mm

Delivery data

  • Weight: 0,43 kg/Piece
  • Packing unit: 1

Technical data

  • Material: Brass, conform to German drinking water regulations
  • Surface: Chrome
  • Connection: DN 15 G 1/2 AG
  • Outlet: Ø 10 mm (DN 10 G 3/8 AG), Hose screw connection Ø 14.5 mm (DN 20 G 3/4 AG)
  • Safety device, conforms to EN 1717: EB
  • Certificates: PA-IX 851/IA, SVGW
  • Noise class: I, at 100% flow
  • Flow class: A
Recommended associated articles
Anti-vacuum device
Article no: 28 602 06 99
Hint
  • Together with anti-vacuum device: HP safety combination (EN 1717).
