Article number: 05 321 06 99

Design angle valve set EDITION

Design: sieger design. Connecting set for wash basins.
Remember Compare Redirect Datasheet
Find contact person on site
Scope of supply Technical data Related items BIM/CAD

Scope of delivery

2x Design angle valve EDITION (05 320 06 99)
  • Designer angle valve
    • Polished brass body
    • Brass cover for actuation and outlet
    • ASAG easy (Self-sealing connection thread)
    • Grease chamber head part
    • Push rod
  • High-tensile brass cone compression connection with length compensation
  • Rosette Ø 60 mm
1x Design siphon EDITION (01 429 06 99)
  • Designer siphon
    • Cleaning aperture with O-ring seal
    • Plastic plunger
  • Brass rosette with slide ring

Delivery data

  • Weight: 2,31 kg/Set
  • Packing unit: 1

Technical data

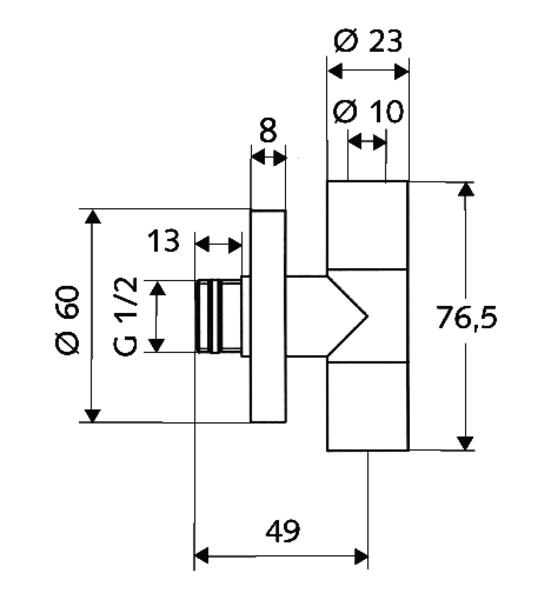

Design angle valve EDITION (05 320 06 99)
  • Material: Brass, conform to German drinking water regulations
  • Surface: Chrome
  • Connection: DN 15 G 1/2 AG with ASAG easy
  • Outlet: Ø 10 mm (DN 10 G 3/8 AG)
  • Certificates: P-IX 229/IA, ACS, NF
  • Noise class: I
  • Flow class: A
Design siphon EDITION (01 429 06 99)
  • Material: Brass
  • Surface: Chrome
