Article number: 03 300 06 99

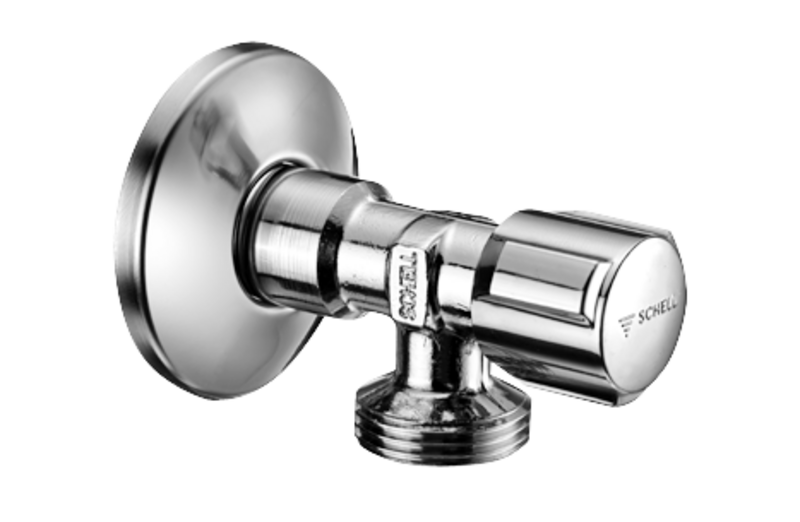

Draw-off valve

Remember Compare Redirect Datasheet
Find contact person on site
Scope of supply Technical data Related items BIM/CAD

Scope of delivery

  • Draw-off valve
    • COMFORT handle
  • Push rosette

Delivery data

  • Weight: 0,12 kg/Piece
  • Packing unit: 100

Technical data

  • Material: Brass, conform to German drinking water regulations
  • Surface: Chrome
  • Connection: DN 15 G 1/2 AG
  • Outlet: DN 20 G 3/4 AG
  • Certificates: PA-IX 025/I, ACS, WRAS applied
  • Noise class: I, at 100% flow
