Article number: 02 819 00 99

WC operating panel AMBITION

Discontinued
For SCHELL COMPACT II concealed WC flush valve.
Remember Compare Redirect Datasheet
Find contact person on site
Scope of supply Technical data Related items BIM/CAD
Scope of delivery Designer operating panel made from safety glass Operating button made from brass Self-closing cartridge with automatic nozzle cleaning needle Baffle plate for flow rate regulation Installation frame

Delivery data

  • Weight: 0,79 kg/Piece
  • Packing unit: 1

Technical data

  • Single flush: 4.5 - 9.0 l
  • Material: Actuation Brass; Front panel Safety glass (ESD); Frame Plastic
  • Surface: Actuation Chrome; Front panel White; Frame Chrome
  • Dimensions front plate: W 121.5 mm x h 152.5 mm x d 14.5 mm
Necessary associated articles
Concealed WC flush valves COMPACT II
Article no: 01 194 00 99
or
WC module MONTUS
Article no: 03 076 00 99
Hint
  • Discontinued article, as long as stocks last
Downloads

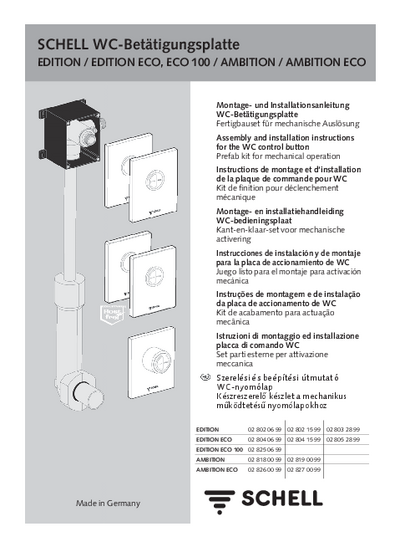

Assembly instructions

WC-Betätigungsplatten EDITION / AMBITION

Brochure

Your calling card for public sanitary rooms.

Brochure

WC and urinal flush systems.
