Article number: 05 095 06 99

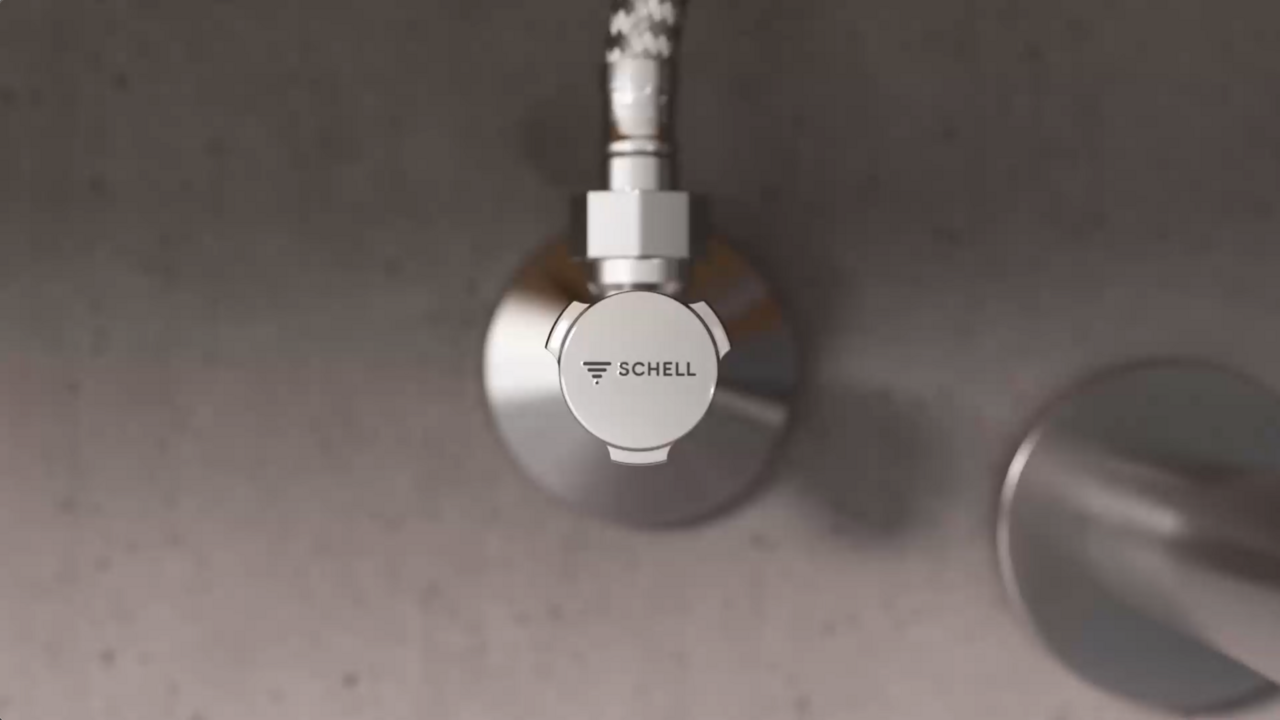

Angle valve with regulating function COMFORT
With COMFORT handle. According to DIN 3227.
Find contact person on site
Scope of delivery
- Angle valve
- COMFORT handle
- Long push rod
- High-tensile brass cone compression connection with length compensation
- Push rosette Ø 54 mm
Delivery data
- Weight: 0,14 kg/Piece
- Packing unit: 10

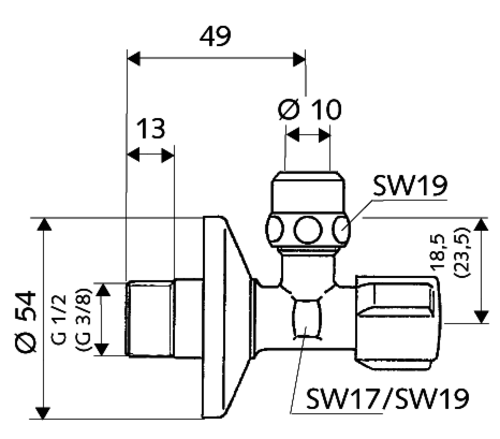

Technical data
- Material: Brass, conform to German drinking water regulations
- Surface: Chrome
- Connection: DN 10 G 3/8 AG
- Outlet: Ø 10 mm (DN 10 G 3/8 AG)
- Certificates: P-IX 212/IA, ACS, KIWA
- Noise class: I
- Flow class: A
