Article number: 05 431 06 99

Angle valve with regulating function COMFORT with filter

With COMFORT handle. To protect high-quality fittings, e.g. electronically controlled fittings. According to DIN 3227.
Remember Compare Redirect Datasheet
Find contact person on site
Scope of supply Technical data Related items BIM/CAD

Scope of delivery

  • Angle valve
    • COMFORT handle
    • Filter (mesh gauge: 250 µm)
    • Long push rod
  • Push rosette Ø 54 mm

Delivery data

  • Weight: 0,20 kg/Piece
  • Packing unit: 1

Technical data

  • Material: Brass, conform to German drinking water regulations
  • Surface: Chrome
  • Connection: DN 15 G 1/2 AG
  • Outlet: DN 15 G 1/2 AG
  • Certificates: P-IX 198/IA, ACS, WRAS applied
  • Noise class: I
  • Flow class: A
Downloads

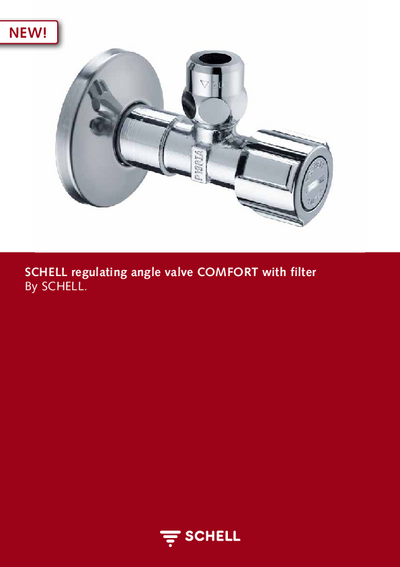

Flyer

Regulating angle valve COMFORT with filter
Hint
  • Filter cleaning with angle valve closed without draining the line.
  • Basket filter set as replacement, see accessories.
