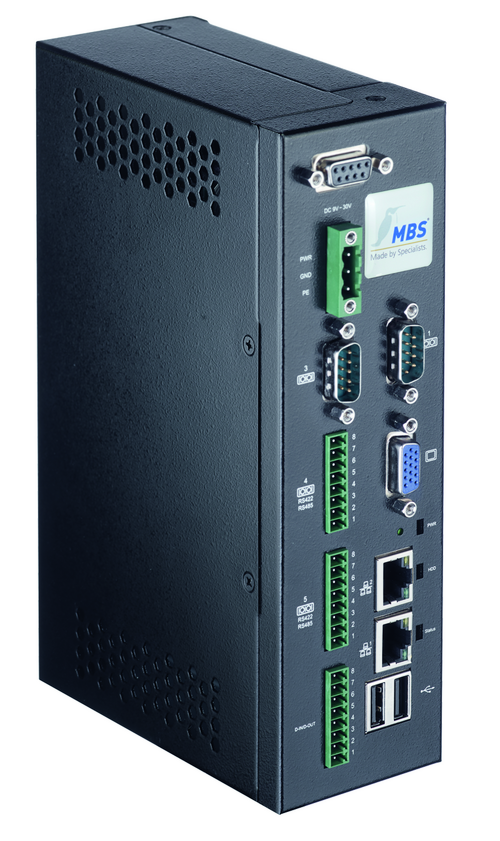

SWS Gateway Profibus 10.000

Technical data

• Power consumption: 8 W
• Ambient temperature: 0-45 °C, 32-113 °F
• Ambient humidity: 20–80% relative humidity, non-condensing
• Data points: 10.000
• Dimensions: w 60 mm x h 195 mm x d 130 mm

Connections and displays

• 1: V+ 9-30 VDC
• 2: V- GND
• 3: Ground

• 1: DCD
• 2: RXD input
• 3: TXD output
• 4: DTR
• 5: GND
• 6: DSR
• 7: RTS output
• 8: CTS input
• 9: RI

• 1: 100 Ohm termination
• 2: DATA - non-inverted output
• 3: DATA - inverted output
• 4: +5 V
• 6: GND

• 1: GND for digital outputs
• 2: GND for digital inputs
• 3: Digital input 1 (max. 50 VDC)
• 4: Digital input 2 (max. 50 VDC)
• 5: Digital input 3 (max. 50 VDC)
• 6: V+ for digital output (max. 40 V)
• 7: Digital output 1 (max. 40 VDC, 0.5 A)
• 8: Digital output 2 (max. 40 VDC, 0, 5 A)

• Connection for display devices with VGA signal Reset button

• LED green when unit is switched on
• HDD
• LED green when hard disk is accessed
.

• RJ45 10/100 Mbit Ethernet
• Link indicates a LAN- connection
• 10/100 indicates the connection speed

• USB 2. 0 for USB device e.g. USB-LON adapter

• Profibus DP Master/Slave
• Profibus FMS
• Profibus GA.2 .0
