Article number: 02 827 00 99

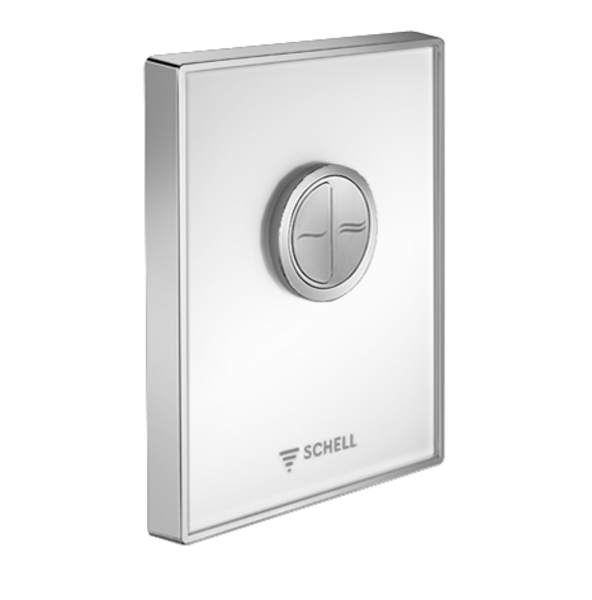

WC operating panel AMBITION Eco

Glass. Dual flush. For SCHELL COMPACT II concealed WC flush valve.
Find contact person on site

Scope of delivery

  • Designer operating panel made from safety glass
    • Operating buttons for economy/main flush made from die-cast zinc
  • Self-closing cartridge with automatic nozzle cleaning needle
  • Baffle plate for flow rate regulation
  • Installation frame

Delivery data

  • Weight: 0,88 kg/Piece
  • Packing unit: 1

Technical data

  • Dual flush: Economy flush volume 3 l, Main 4.5 - 9.0 l
  • Material: Actuation Die-cast zinc; Front panel Safety glass (ESD); Frame Plastic
  • Surface: Actuation Chrome; Front panel White; Frame Chrome

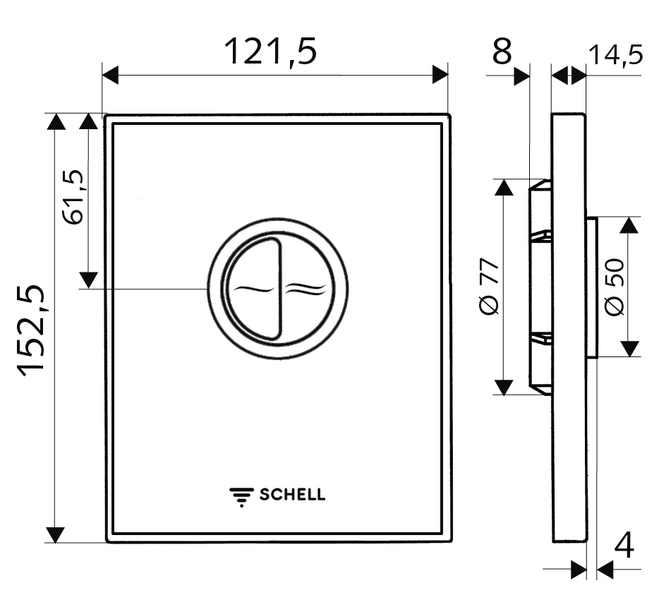

  • Dimensions front plate: w 121.5 mm x h 152.5 mm x d 14.5 mm
  • Certificates: Watermark
Necessary associated articles
Concealed WC flush valves COMPACT II
Article no: 01 194 00 99
WC module MONTUS
Article no: 03 076 00 99
