Article number: 02 141 06 99

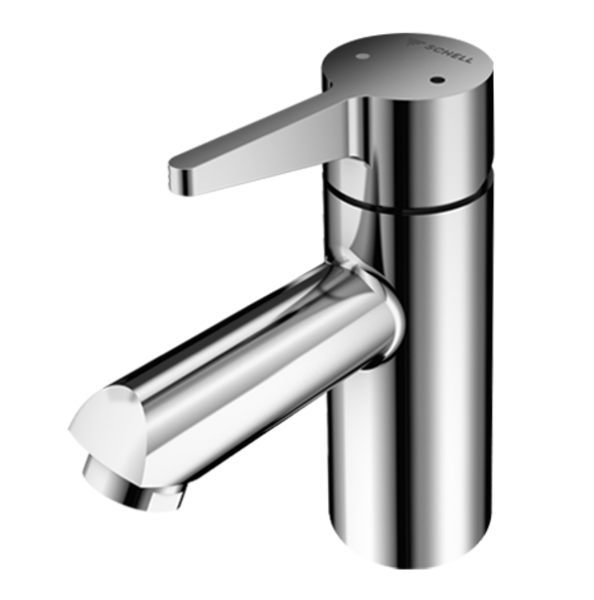

Wash basin tap MODUS EH
Discontinued
HD-M - high-pressure mixed water
Compact single-lever mixer tap.
Find contact person on site
Scope of delivery
- Single-lever single-hole tap
- Single-lever mixer
- Ceramic cartridge with hot water restrictor
- Flow regulator
- 2 flexible connection hoses Clean-Fix G 3/8 IG x 380 mm
- Fastening material for wash basin installation
Delivery data
- Weight: 1,13 kg/Piece
- Packing unit: 1
Technical data
- Flow: max. 5 l/min pressure independent
- Flow pressure: 1.0 - 5.0 bar
- Max. Resting pressure: 8 bar
- Max. operating temperature: 70 °C (80 °C for thermal disinfection)
- Material: Actuation Die-cast zinc; Housing Brass, conform to German drinking water regulations
- Surface: Chrome
- Connection: 2x G 3/8 IG
- Certificates: P-IX 29002/IO, ACS
- Noise class: I
- Flow class: O
Recommended associated articles
Hint
- Discontinued article, as long as stocks last
