Article number: 03 388 06 99

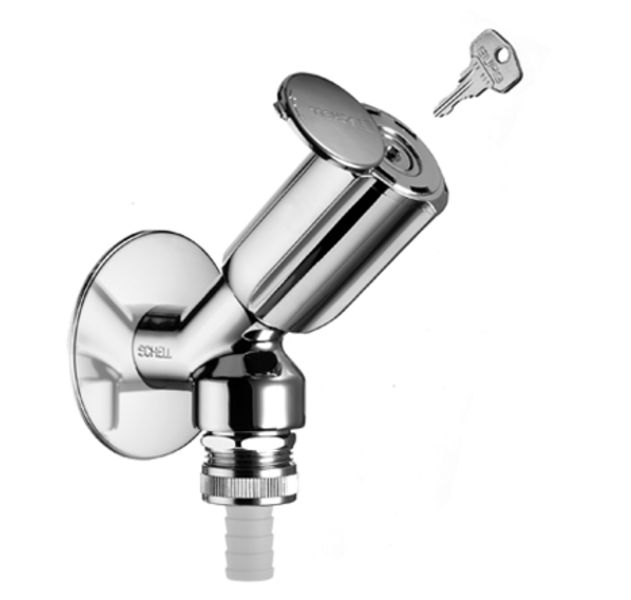

Appliance inclined-seat valve SECUR

Discontinued
With SECUR COMFORT handle, lockable. For protection against the unauthorised withdrawal of water. HD safety combination (EN 1717).
Remember Compare Redirect Datasheet
Find contact person on site
Scope of supply Technical data Related items BIM/CAD

Scope of delivery

  • Appliance inclined-seat seat valve
    • Lockable COMFORT handle
    • Backflow preventer (EN 1717: EB-type)
    • Anti-vacuum device (EN 1717: HB-type)
    • Grease chamber head part
  • Hose screw connection
  • Rosette Ø 54 mm (depth 3 mm)
  • 2 keys

Delivery data

  • Weight: 0,45 kg/Piece
  • Packing unit: 1

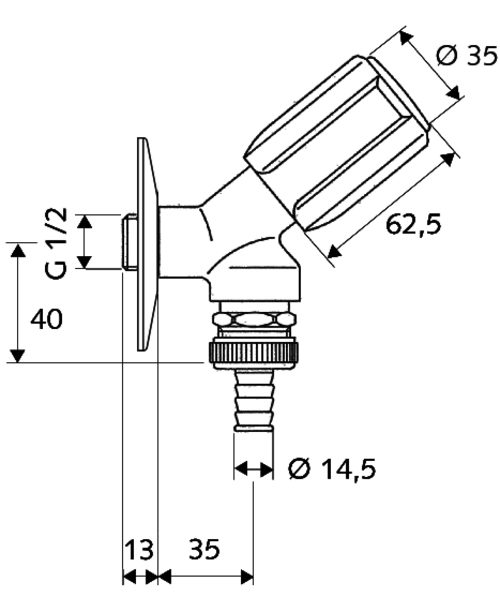

Technical data

  • Material: Brass, conform to German drinking water regulations
  • Surface: Chrome
  • Connection: DN 15 G 1/2 AG
  • Outlet: Hose screw connection Ø 14.5 mm (DN 20 G 3/4 AG)
  • Safety device, conforms to EN 1717: HD
  • Certificates: P-IX 007/I, DVGW, ACS, SVGW
  • Noise class: I
