Article number: 00 528 00 99

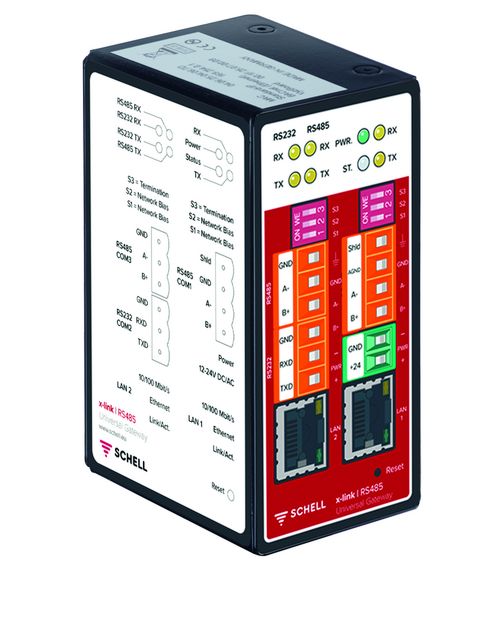

SWS Gateway MODBUS IP/RTU - X Link

SWS
For integrating the SWS water management system with a central building control/automation system. Translates the SWS protocol into the MODBUS IP/RTU bus protocol. 2 seperate networks for the SWS and MODBUS protocol. Data points can be chosen as required – subsequent upgrade possible to max. 2,500 data points without replacing hardware. Configuration accessible only via individual password.
Remember Compare Redirect Datasheet
Find contact person on site
Scope of supply Technical data Related items BIM/CAD

Scope of delivery

  • Gateway with web interface
    • ARM9 processor
    • LED status indicators
    • Rugged metal housing for top hat rail installation
    • RS-232/RS-485 interfaces
    • 2x RJ45 LAN interface, 10/100 Mbps
    • Preinstalled German and English language packs

Delivery data

  • Weight: 0,48 kg/Piece
  • Packing unit: 1

Technical data

  • Data points: 200
  • Dimensions: w 48 mm x h 100 mm x d 70 mm
  • Input: 12 - 24 VAC
Recommended associated articles
Configuration/project planning SWS Gateway
Article no: 98 102 00 00
Commiossioning SWS Gateway
Article no: 98 103 00 00
Downloads

Flyer / Brochure

Die SWS Gateways.

Brochure

Connect sanitary fittings intelligently.With the SCHELL SWS Water Management System.

Brochure

The water management system SWS.

Brochure

Worldwide access to professional water management. With SMART.SWS
Hint
  • Power supply on site, e.g. MEAN WELL MDR-60-24.
