Article number: 01 946 00 99

Concealed Masterbox WBW-E-M

Mixed water
For LINUS W-E-M concealed wash basin taps. Electronic actuation. With sealed housing bushings and internal isolating valve.
Remember Compare Redirect Datasheet
Find contact person on site
Scope of supply Technical data Related items BIM/CAD

Scope of delivery

  • Masterbox
    • Roughing-in housing
    • Concealed wash basin tap with 2 isolating valves
    • 6 V solenoid valve
    • Mixing cartridge
    • 2 pre-filters
    • 2 backflow preventers (EN 1717: EB-type)
    • Mount for wall outlet
  • Flushing nozzle
  • Flush-mounted cap

Delivery data

  • Weight: 2,30 kg/Piece
  • Packing unit: 1

Technical data

  • Flow at 3 bar: 15 l/min
  • Flow pressure: 1.0 - 5.0 bar
  • Max. Resting pressure: 8 bar
  • Max. operating temperature: 70 °C (80 °C for thermal disinfection)
  • Material: Housing Plastic; Waterpath Dezincification-resistant brass, conform to German drinking water regulations
  • Dimensions: w 149 mm x h 138 mm x d 140 mm
  • Installation depth: 100 - 124 mm
  • Connection: 2x G 1/2 IG
  • Certificates: Belgaqua
Necessary associated articles
Concealed wash basin tap LINUS W-E-M
Article no: 01 929 06 99
or
Concealed wash basin tap LINUS W-E-M
Article no: 01 930 06 99
or
Concealed wash basin tap LINUS W-E-M
Article no: 01 929 28 99
or
Concealed wash basin tap LINUS W-E-M
Article no: 01 930 28 99
or
Concealed wash basin tap LINUS W-E-M
Article no: 01 932 06 99
or
Concealed wash basin tap LINUS W-E-M
Article no: 01 933 06 99
or
Concealed wash basin tap LINUS W-E-M
Article no: 01 932 28 99
or
Concealed wash basin tap LINUS W-E-M
Article no: 01 933 28 99
or
Concealed wash basin tap LINUS W-E-M
Article no: 01 935 06 99
or
Concealed wash basin tap LINUS W-E-M
Article no: 01 936 06 99
or
Concealed wash basin tap LINUS W-E-M
Article no: 01 935 28 99
or
Concealed wash basin tap LINUS W-E-M
Article no: 01 936 28 99
For building sealing according to DIN 18534
Expansion sleeve
Article no: 00 919 00 99
Recommended associated articles
Wash basin module MONTUS
Article no: 03 088 00 99
Downloads

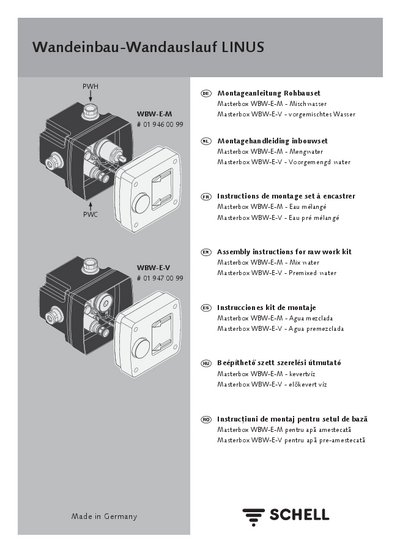

Installation instructions

Raw work it LINUS

Installation instructions

Dehnzonenmanschette

Brochure

Washbasin taps.
